Factory Fence
Clarify boundary responsibilities
Simple maintenance and controllable costs
Prevent accidental outward collision of items inside
Avoid impacts of personnel, items or risks inside on the outside
Durable material and resistance to industrial wear
Clear warning and enhanced safety awareness
The core function of safety protective fences is to construct "safety boundaries" for different scenarios through physical barriers plus functional adaptation.
Isolate "hazardous areas" from "safe areas": For example, fences around electrical equipment can prevent unauthorized personnel from approaching to avoid electric shock risks; fences around deep foundation pits at construction sites can prevent people from falling accidentally; fences around hazardous material storage areas in chemical plants can limit the spread range of toxic substances after leakage and reduce impacts on surrounding areas.

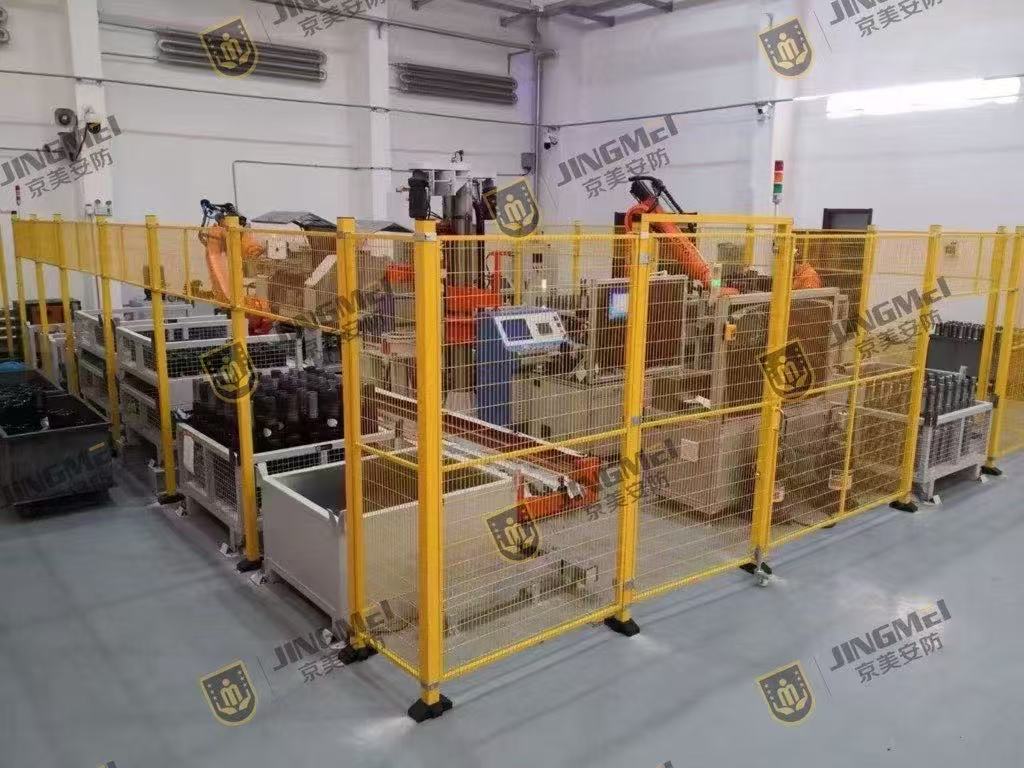

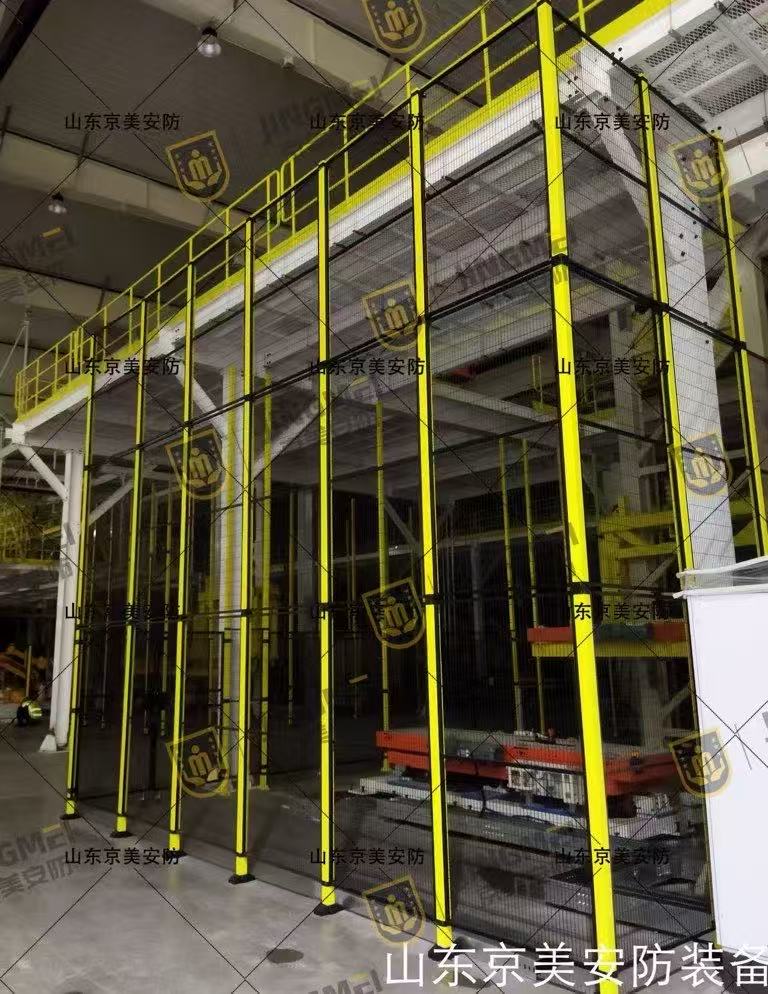

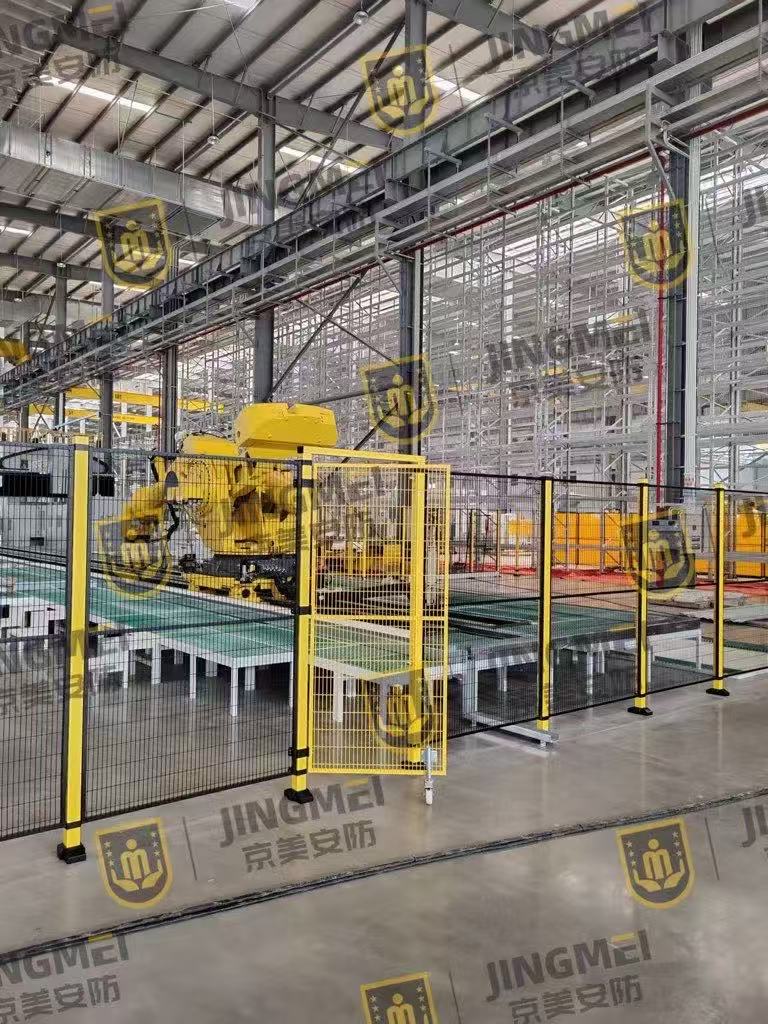

As shown in the figure, these are the application scenarios of our safety fences. It can be clearly seen that our safety fences effectively isolate the outside from the inside and play a significant protective role.
As shown in the figure below are the detailed parameters of our safety fences.
网片高度 Mesh height | 1000mm 1800mm 2000mm |
网片宽度 Mesh width | 1400mm 1200mm 1000mm 800mm 700mm 500mm 300mm 200mm |
网格尺寸 Grid size | 20x100mm |
丝径 Silk diameter | 3mm |
网片边框 Mesh frame | 20x20mm |
PC板厚度 | 3mm 4mm 5mm厚度 |
钢板 Steel plate | 1.5mm厚度 |
Note:This configuration is a standard mesh specification configuration
立柱高度 Height of column | 1200mm 2000mm 2200mm |
立柱规 Column specifications | 60x60x1.5mm 40x60x1.5mm 80x80x3mm |
光幕立柱 | 80x80mm |
地脚规格 Anchor specifications | 70x180mm 180x180x8mm |
网片连接方式 Mesh connection mode | 卡环链接、螺钉链接 Snap ring connection、screw connection |
地面连接方式Gound connection mode | 加膨胀螺栓连接 Add expansion bolt connection |
Note:Other special sizes can be customized
