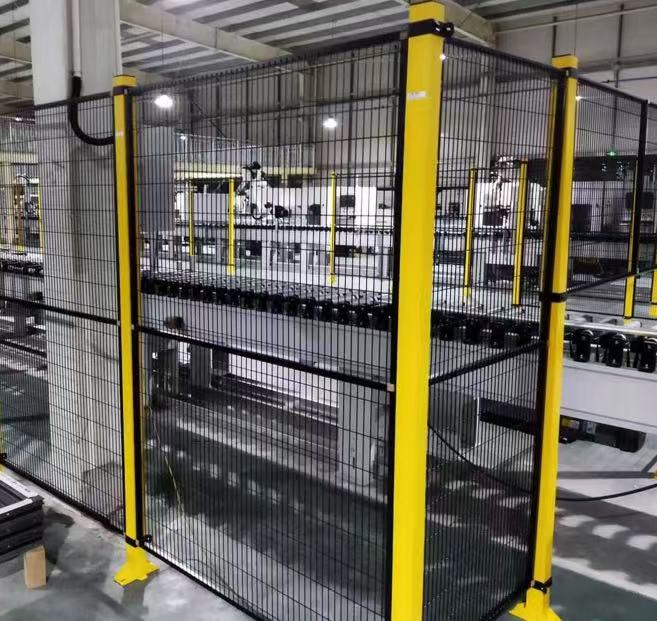

Production line fence
High Strength and Stability: Capable of withstanding large impact forces without deforming easily.
Easy and Fast Installation: Quick construction with a short installation period.
Versatile Surface Treatment: Options for anti-corrosion treatments such as spraying and galvanizing to enhance weather resistance and extend service life.
Aesthetic Appeal: Neat, attractive appearance with customizable heights and styles to suit different needs.
Low Maintenance Cost: Easy to clean and repair, resulting in lower overall maintenance expenses.
Product introduction
Post: As the supporting structure, it is usually made of steel pipe material, which has high strength and stability, and is to fix the fence mesh and transfer the weight of the entire fence to the ground.Mesh: It is the main part to achieve the protective function. The mesh is from steel wire, and the fence board has different hole diameters, shapes and materials to meet different protection needs.Connecting parts: Used to connect the post and the, as well as the post and the ground, and the post and the post. Common ones include bolts, nuts, clamps, welding parts, etc., to the integrity and stability of the fence structure.
Specifications
1. Structure Form: Q235 Carbon Steel
2.Specifications：1400*1800mm
3. Frame Specification: 20*20*1.2mm; Grid Spacing: 20*100*3mm
4. Fence Height from Ground: 150mm
5. Spray Coating Color: Column yellow (RAL1023), Single Door Mesh yellow (RAL1023), Fence black (RAL9005), all matte finish
Applications

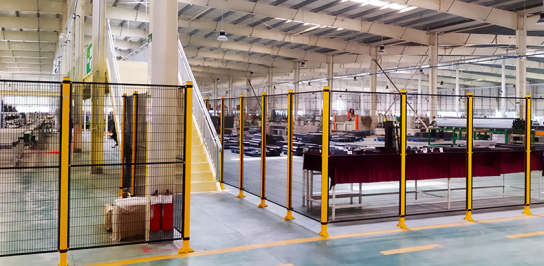

Factory workshop

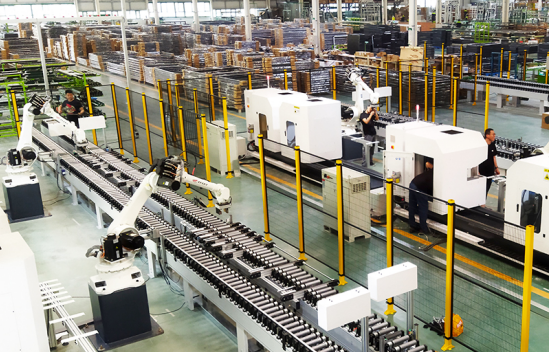

Equipment peripheral protection: Installed around large mechanical equipment such as punch presses, lathes, milling machines, etc., to prevent operators accidentally touching the equipment during operation and causing accidents, and also to avoid equipment parts from accidentally flying out during operation and causing injuries to personnel.
Channel isolation: Divides production areas and channels, guides the reasonable flow of personnel and materials, and prevents personnel from entering dangerous areas or interfering with normal production operations during walking
