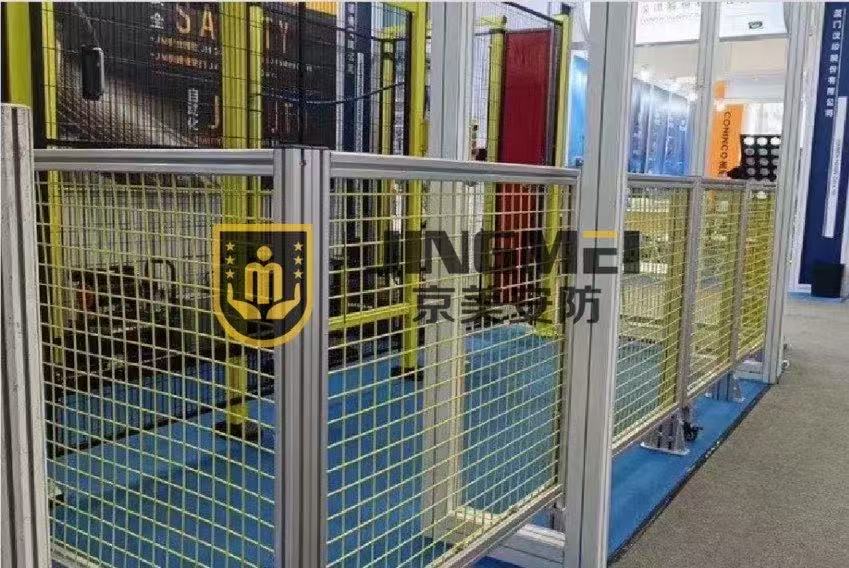

Protection Rail

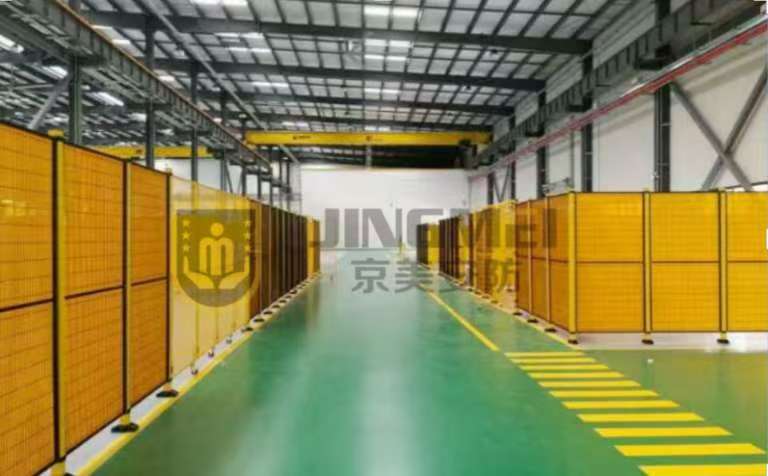

Steel column and steel mesh fencing has become the ideal choice in the modern protection field due to its excellent performance and remarkable practical advantages. In terms of structural design, the fencing adopts columns and mesh sheets made of high-strength steel, which are optimized through scientific mechanical calculations. It has strong impact resistance, can withstand heavy impacts, and maintain structural stability. Even in the face of human collisions or extreme weather such as rainstorms and strong winds, it is not easy to deform or collapse, thereby building a reliable safety protection barrier for scenarios such as construction sites and factory areas.
Steel Column and Steel Mesh
1. Structure Form: Q235 Carbon Steel
2. Column Height: 2200mm
3. Square Tube Specification: 60*60*1.5mm
4. Mesh Height: 2000mm
5. Mesh Width: 200mm/300mm/500mm/700mm/800mm/1000mm/1200mm/1400mm
6. Frame Specification: 20*20*1.5mm; Grid Spacing: 20*100*3mm
7. Fence Height from Ground: 150mm
8. Spray Coating Color: Column yellow (RAL1023), Single Door Mesh yellow (RAL1023), Fence black (RAL9005), all matte finish
Aluminum Profiles
Structure Form: Legged Aluminum Profiles, Standalone Column Aluminum Profiles, On-site Assembled Aluminum Profiles
