Safety Fence For Automation Equipment
Robot protective fences are powerful devices in industrial automation, which can ensure safety and improve efficiency.
Physical isolation of hazardous areas: By virtue of a sturdy fence structure, it can precisely demarcate the operating range of robots (including robotic arms, AGVs, etc.) and form a clear separation between them, personnel, and other equipment.
Reduction of unexpected shutdowns: In the absence of protective fences, incidents such as accidental contact by personnel or intrusion of foreign objects may cause robots to shut down emergency or malfunction; however, with fences in place, such interferences can be effectively mitigated, thus ensuring the continuous operation of the production line and reducing efficiency losses caused by unexpected interruptions.Steel Column and Steel Mesh
1. Structure Form: Q235 Carbon Steel
2. Column Height: 2200mm/2000mm/1200mm;
3. Square Tube Specification: 60*60*1.5mm
4. Mesh Height: 2000mm/1800mm/1000mm;
5. Mesh Width: 200mm/300mm/500mm/700mm/800mm/1000mm/1200mm/1400mm
6. Frame Specification: 20*20*1.5mm; Grid Spacing: 20*100*3mm
7. Fence Height from Ground: 150mm
8. Spray Coating Color: Column yellow (RAL1023), Single Door Mesh yellow (RAL1023), Fence black (RAL9005), all matte finish
Steel (such as Q235): It features high strength and strong impact resistance, making it suitable for high-risk areas where robotic arms, heavy-duty robots, etc., operate. It can be made into mesh or plate-type fences, and its surface is mostly treated with plastic spraying for rust prevention.

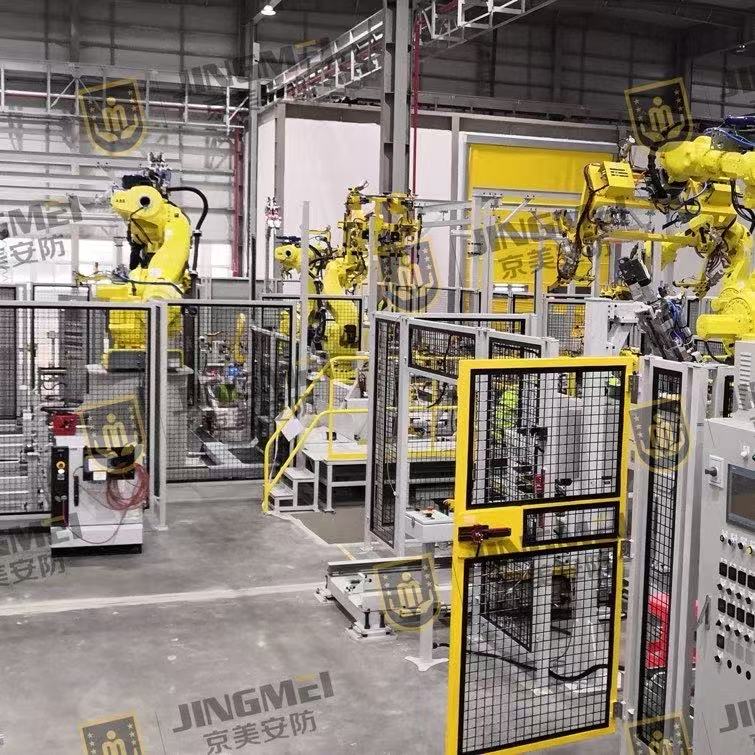

This picture shows the application scenario of safety fences when robots are working.
Safety fences play a dual role as "physical safety barriers" and "work order managers" in robot applications.
